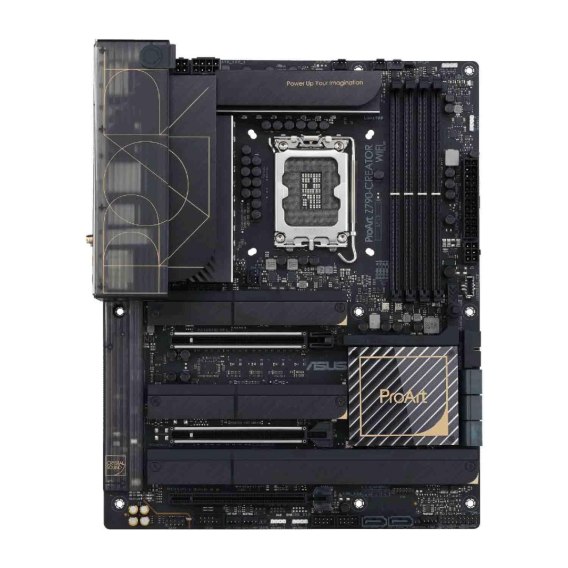

Płyta Asus ProArt Z790-CREATOR WIFI /Z790/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX
The Symbol: PROART Z790-CREATOR WIFI
The Availability Of: Brak towaru 0 opak
Price: 2444.33
Price: 2444.33
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum NET 0,00 Kč
Sum Gross 0,00 Kč
Price includes discounts
ZAMÓWIENIA ZŁOZONE DO GODZINY 14 WYSYŁAMY TEGO SAMEGO DNIA!!! W dni robocze. Dotyczy produktów z deklaracją wysyłki 24 godziny.
No goods
Enter your email
Zamówienie telefoniczne: 12 200 59 26
Availability and delivery
Order within
and we will send the package today
Shipping within:
48 hours
Price of consignment:
The Lack Of
EAN :
4711081988984
BIOS:
256 Mb
Chipset płyty głównej:
Intel® Z790
Format płyty:
ATX
Gniazdo procesora:
Socket 1700
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin) + ATX12V (6-pin) + ATX12V (4-pin)
Opakowanie:
Box
Standard pamięci:
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC)
Wymiary [S x W] (mm):
305 x 244
Zawiera baterię / akumulator:
Tak
Port Bluetooth:
Bluetooth V5.3
Maksymalna wielkość pamięci:
192 GB
Port LAN:
1x 10 Gigabit LAN Marvell® AQtion, 1x 2,5 Gigabit LAN Intel®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Wbudowana karta graficzna:
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Obsługiwane typy procesorów:
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i3 14th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i5 14th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i7 14th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Core i9 14th Generation, Intel Pentium™ (Socket 1700)
Uwagi do procesora:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
memory frequency support depends on the CPU types, Non-ECC, Un-buffered Memory, OptiMem II, Supports Intel® Extreme Memory Profile (XMP)
Zintegrowany kontroler SATA:
Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 - RAID 0,1,5
Uwagi do kontrolera SATA:
- 8 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe4.0x4 & SATA modes), Intel® 13th & 12th Gen Processors:, Intel® Rapid Storage Technology supports NVMe RAID 0/1/5,SATA RAID 0/1/5/10, Intel® Z790 Chipset:, M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended, once either a SATA or NVMe device is detected at M.2_4, Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
Gniazda karty graficznej:
2x Thunderbolt™ 4 (USB Type-C®), HDMI
Uwagi do karty graficznej:
2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and, and video output configuration regarding DP IN and Intel® Thunderbolt™ 4, each requires a USB-C to DisplayPort adapter cable. For display connection, Graphics specifications may vary between CPU types, Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, ports, please refer to the user manual for more details. VGA resolution, Support 4K@60Hz as specified in HDMI 2.1, Support 8K@60Hz as specified in DisplayPort 1.4, support depends on processors' or graphic cards' resolution, Thunderbolt™ video outputs
Zintegrowana karta dźwiękowa:
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej:
- Audio cover, - Dedicated audio PCB layers, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording, - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for, - Premium audio capacitors, - Supports up to 32-Bit/192 kHz playback, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Unique de-pop circuit, 7.1 Surround Sound audio, 7.1 Surround Sound audio output, A chassis with an HD audio module in the front panel is required to support, Audio Features, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, headphone and speakers, input (Line-in)
Złącza PCI Express x16:
3
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 slot (supports x4 mode), - 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), Intel® 13th & 12th Gen Processors:, Intel® Z790 Chipset:, Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
4
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
6x USB 3.1 + 2x Thunderbolt 4/USB Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port równoległy (LPT):
Brak
Inne porty i gniazda:
20-3 pin System Panel header with Chassis intrude function, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 5x 4-pin Chassis Fan header(s), AURA RGB header, Clear CMOS header, CPU Over Voltage jumper, Przycisk BIOS FlashBack na panelu tylnym, SPI TPM header (14-1pin), Thermal Sensor header
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
manufacturer's website for the latest specifications (366), Supports 2.4/5/6GHz frequency band, The Bluetooth version may vary, please refer to the Wi-Fi module, Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), WiFi 6E 6GHz regulatory may vary between countries
