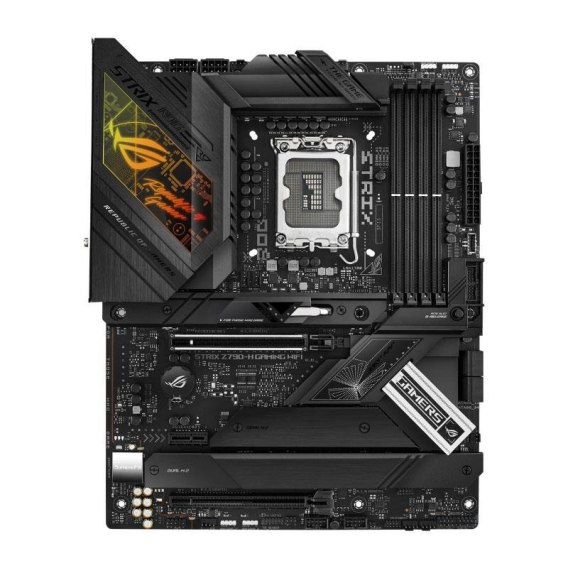

Płyta Asus ROG STRIX Z790-H GAMING WIFI /Z790/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX
The Symbol: ROG STRIX Z790-H GAMING WIFI
The Availability Of: Brak towaru 0 opak
Price: 1530.86
Price: 1530.86
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum NET 0,00 Kč
Sum Gross 0,00 Kč
Price includes discounts
ZAMÓWIENIA ZŁOZONE DO GODZINY 14 WYSYŁAMY TEGO SAMEGO DNIA!!! W dni robocze. Dotyczy produktów z deklaracją wysyłki 24 godziny.
No goods
Enter your email
Zamówienie telefoniczne: 12 200 59 26
Availability and delivery
Order within
and we will send the package today
Shipping within:
48 hours
Price of consignment:
The Lack Of
EAN :
4711387038192
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej:
Intel® Z790
Format płyty:
ATX
Gniazdo procesora:
Socket 1700
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Opakowanie:
Box
Standard pamięci:
DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600, DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC)
Wymiary [S x W] (mm):
305 x 244
Zawiera baterię / akumulator:
Tak
Port Bluetooth:
Bluetooth V5.3
Maksymalna wielkość pamięci:
192 GB
Port LAN:
1x 2,5 Gigabit LAN Intel®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Wbudowana karta graficzna:
Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
Obsługiwane typy procesorów:
Intel Celeron™ (Socket 1700), Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700)
Uwagi do procesora:
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
depending on the CPU and memory configuration, for more information please, Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function., Non-ECC, Un-buffered Memory, OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules vary, Supports Intel® Extreme Memory Profile (XMP), to CPU/Memory Support list
Zintegrowany kontroler SATA:
Chipset: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 4x M.2 + RAID 0,1,5,10
Uwagi do kontrolera SATA:
0/1/5/10, 4 x SATA 6Gb/s port(s), Intel® 13th & 12th Gen Processors:, Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID, Intel® Z790 Chipset:, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes, Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@60Hz as specified in DisplayPort 1.4, VGA resolution support depends on processors' or graphic cards' resolution, ww.intel.com for any updates
Zintegrowana karta dźwiękowa:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
Gniazda karty dźwiękowej:
5x Audio Jack, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej:
7.1 Surround Sound audio, Audio Cover, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, High quality 120 dB SNR stereo playback output and 113 dB SNR recording inp, Impedance sense for front and rear headphone outputs, Premium audio capacitors, Rear optical S/PDIF out port, Savitech SV3H712 AMP, Supports up to 32-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, SupremeFX Shielding Technology
Złącza PCI Express x16:
2
Złącza PCI Express x1:
1
Uwagi do złącz PCI:
1 x PCIe 3.0 x1 slot, 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode), 1 x PCIe 5.0 x16 slot, Intel® 13th & 12th Gen Processors:, Intel® Z790 Chipset:, Please check the PCIe bifurcation table on the support site, To ensure compatibility of the device installed, please refer to
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
6
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
2x USB 2.0 + 4x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Inne porty i gniazda:
20-3 pin System Panel header with Chassis intrude function, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 5x 4-pin Chassis Fan header(s), AURA RGB header, CPU Over Voltage jumper, Przycisk BIOS FlashBack na panelu tylnym, Przycisk Clear CMOS na panelu tylnym, Thermal Sensor header, Thunderbolt header, Wi-Fi module with an antenna connector
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), manufacturer's website for the latest specifications (579), Supports 2.4/5/6GHz frequency band, The Bluetooth version may vary, please refer to the Wi-Fi module, Wi-Fi 6E, WiFi 6E 6GHz regulatory may vary between countries.
