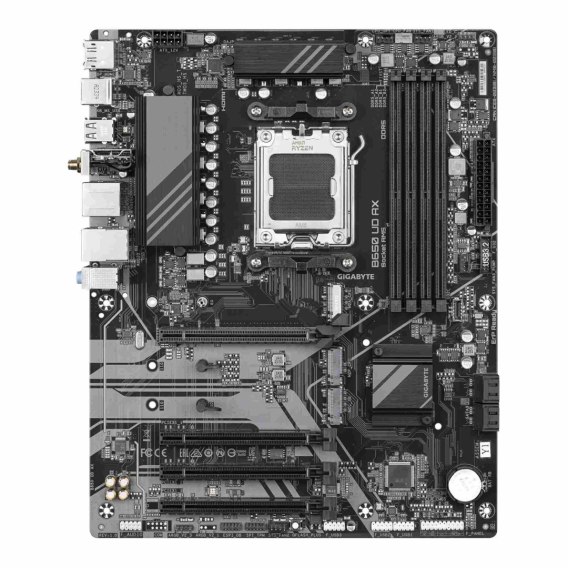

Płyta Gigabyte B650 UD AX (rev. 1.0) /AMD B650/DDR5/SATA3/M.2/USB3.0/PCIe5.0/WiFi/BT/AM5/ATX
The Symbol: B650 UD AX-Y1
The Availability Of: Brak towaru 0 opak
Price: 620.09
Price: 620.09
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum NET 0,00 Kč
Sum Gross 0,00 Kč
Price includes discounts
ZAMÓWIENIA ZŁOZONE DO GODZINY 14 WYSYŁAMY TEGO SAMEGO DNIA!!! W dni robocze. Dotyczy produktów z deklaracją wysyłki 24 godziny.
No goods
Enter your email
Zamówienie telefoniczne: 12 200 59 26
Availability and delivery
Shipping within:
48 hours
Price of consignment:
The Lack Of
EAN :
4719331863944
BIOS:
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset płyty głównej:
AMD B650
Format płyty:
ATX
Gniazdo procesora:
Socket AM5
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Opakowanie:
Box
Standard pamięci:
DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC)
Wymiary [S x W] (mm):
305 x 244
Zawiera baterię / akumulator:
Tak
Port Bluetooth:
Bluetooth V5.3
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x Gigabit LAN 100/1000 Mb/s (Realtek® 8111H)
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Extreme Memory Profile (XMP) memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 3x M.2 - RAID 0, 1, 10
Uwagi do kontrolera SATA:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3,, 4 x SATA 6Gb/s connectors, M key, type 22110/2280 SSDs:, M key, type 25110/22110/2580/2280 SSDs:, PCIe 4.0 x2 SSDs, PCIe 5.0 x4/x2 SSDs
Gniazda karty graficznej:
DisplayPort, HDMI
Uwagi do karty graficznej:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, - 1 x HDMI port, supporting a maximum resolution of 1920x1080@30 Hz, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Integrated Graphics Processor:, Support for DisplayPort 1.4 version, Support for HDMI 2.1 version and HDCP 2.3, Support for native HDMI 2.1 TMDS compatible ports
Zintegrowana karta dźwiękowa:
Realtek® ALC 897 7.1-Channel High Definition Audio CODEC
Gniazda karty dźwiękowej:
3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej:
To configure 7.1-channel audio, access the audio software for audio setting, You can change the functionality of an audio jack using the audio software
Złącza PCI Express x16:
4
Uwagi do złącz PCI:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU,, If only one graphics card is to be installed, be sure to install it in the, PCIe 3.0 and running at x1, PCIe 4.0 x16 mode, PCIEX16 slot, supporting PCIe 3.0 and running at x1, The PCIEX16 slot can only support a graphics card or an NVMe SSD
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
11
Porty USB na panelu tylnym:
4x USB 2.0 + 5x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Port PS/2:
Port combo klawiatury/myszy PS/2
Port szeregowy (COM):
1x wewnętrzne gniazdo portu COM
Port równoległy (LPT):
Brak
Inne porty i gniazda:
2x SMA antenna connectors (2T2R), 2x system fan headers, 3x Addressable RGB Gen2 LED strip headers, Clear CMOS jumper, CPU fan header, CPU fan/water cooling pump header, Front panel header, Q-Flash Plus button, Reset jumper, RGB LED strip header, System fan/water cooling pump header, Trusted Platform Module header
Ilość złącz pamięci DDR5:
4
Uwagi do WiFi / BT:
- Support for 11ax wireless standard, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Actual data rate may vary depending on environment and equipment., Realtek® RTL8851 WIFI 6 module
