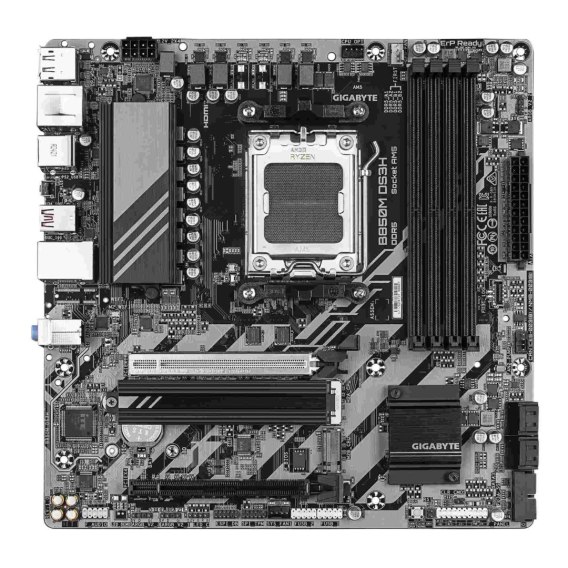

Płyta Gigabyte B850M DS3H /AMD B850/DDR5/SATA3/M.2/USB3.1/PCIe5.0/AM5/M-ATX
The Symbol: B850M DS3H
The Availability Of: Mało 1 opak
Price: 681.79
Price: 681.79
Shopping cart is empty
For free delivery are missing -,--
Free delivery!
Order Summary
Sum NET 0,00 Kč
Sum Gross 0,00 Kč
Price includes discounts
ZAMÓWIENIA ZŁOZONE DO GODZINY 14 WYSYŁAMY TEGO SAMEGO DNIA!!! W dni robocze. Dotyczy produktów z deklaracją wysyłki 24 godziny.
Zamówienie telefoniczne: 12 200 59 26
Availability and delivery
Order within
and we will send the package today
Shipping within:
48 hours
Price of consignment:
The Lack Of
EAN :
4719331866518
BIOS:
256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset płyty głównej:
AMD B850
Format płyty:
Micro-ATX
Gniazdo procesora:
Socket AM5
Gniazdo zasilania:
ATX (24-pin) + ATX12V (8-pin)
Opakowanie:
Box
Standard pamięci:
DDR5-4400, DDR5-4800, DDR5-5200, DDR5-5600 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6600 (OC), DDR5-6666 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC)
Wymiary [S x W] (mm):
244 x 244
Zawiera baterię / akumulator:
Tak
Port Bluetooth:
Nie
Maksymalna wielkość pamięci:
256 GB
Port LAN:
1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
Port Wi-Fi:
Nie
Wbudowana karta graficzna:
Brak lub AMD Radeon™ Graphics (zależy od procesora)
Obsługiwane typy procesorów:
AMD Ryzen™
Uwagi do procesora:
Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do pamięci RAM:
Extreme Memory Profile (XMP) memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10
Uwagi do kontrolera SATA:
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 5 is only available on AMD Ryzen 9000 Series Processors
Gniazda karty graficznej:
2x DisplayPort, HDMI
Uwagi do karty graficznej:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz, Graphics specifications may vary depending on CPU support, Integrated Graphics Processor with AMD Radeon™ Graphics support:, Support for DisplayPort 1.4 version, Support for HDMI 2.1 version and HDCP 2.3, and HDR, Support for native HDMI 2.1 TMDS compatible ports, Support for up to quad-display at the same time
Zintegrowana karta dźwiękowa:
Realtek ® 7.1 Surround Sound High Definition Audio CODEC
Gniazda karty dźwiękowej:
3x Audio Jack
Uwagi do karty dźwiękowej:
To configure 7.1-channel audio, access the audio software for audio setting, You can change the functionality of an audio jack using the audio software
Złącza PCI Express x16:
2
Uwagi do złącz PCI:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4), - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, Chipset:, If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, The PCIEX16 slot can only support a graphics card or an NVMe SSD
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
7
Porty USB na panelu tylnym:
4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS/2:
Port combo klawiatury/myszy PS/2
Port szeregowy (COM):
Brak
Port równoległy (LPT):
Brak
Inne porty i gniazda:
3x Addressable RGB Gen2 LED strip headers, Clear CMOS jumper, CPU fan header, CPU fan/water cooling pump header, Gniazdo modułu TPM, Q-Flash Plus button, Reset button, Reset jumper, RGB LED strip header, System fan header, System fan/water cooling pump header
Ilość złącz pamięci DDR5:
4
